Ultrasonic Flowmeter

Versaflow Sonic 1000 for:

Small size: Chemical additiona applications, cooling circuits
Medium size: Purjied water applications, hydrocarbons
Large size: All water applications, especially for large pipe sizes

Versaflow Converter TWS 9000 for wall mounted, PA, non-Ex, IP65 & Field mounted, die-cast aluminum, non-Ex, IP66/67
Portable VersaFlow Sonic 2000
Ultrasonic Flow Simulator product ID 50044838-004

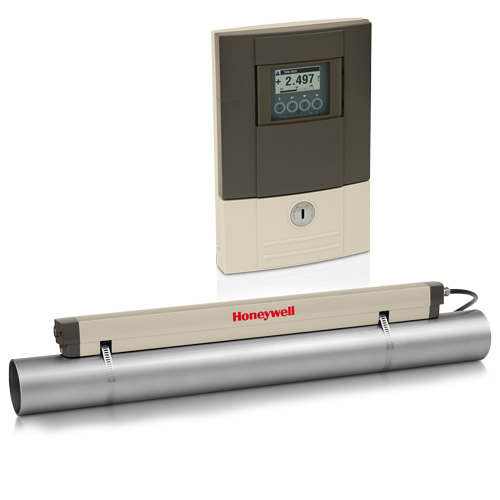

Versaflow Sonic 1000 sensor & TWS 9000 Converter:

Size: DN15 to DN4000
Measuring range: 0...20 m/s / 0...66 ft/s at maximum pipe-wall thickness of 200 mm
Accuracy: ±1%
Process connection: Clamp on
Temperature: -40...120°C standard, -50 to 200oC XT version
Approval: EEx - zone 1, FM - Class I DIV 1, CSA - GP / Class I DIV 1, IP66/67
Sensor material: SS316
Housing: Aluminum: Polyamide - polycarbonate (W-version), Die-cast aluminum with polyurethane coating (F-version), Stainless steel 316 L / 1.4404 (F-version)
Power supply: 220 VAC or 24 VDC
Output: Current, pulse & status output, HART, control input
Cable length 5m, 10m, 20m & 30m

Portable VersaFlow Sonic 2000  Ultrasonic clamp-on Flowmeter:

Size: DN15 to DN1500
Measuring range: 0...20 m/s / 0...66 ft/s at maximum pipe-wall thickness of 200 mm
Accuracy: ±1%
Process connection: Clamp on
Temperature: -40...120°C
Approval: IP 67 / NEMA 6
Sensor material: Anodized aluminum (rail)
Housing: Polyamide PA12, covered with TPE soft touch layer on the sides, Polypropylene (truck on wheels)
Power supply: 14 hours battery life including battery charger
Output: For connection of I/O signals like pulse or current outputs a cable with I/O connection box is available optionally.
Cable length: 3m
