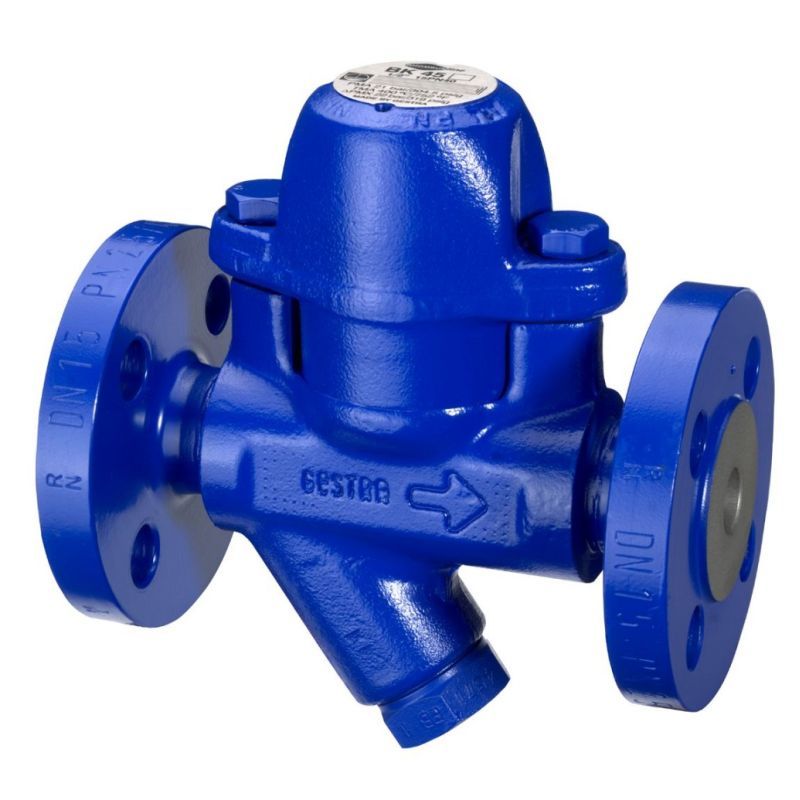

Steam Trap BK45

When the plant is started up, the trap is fully open. Cold condensate and air are discharged. With rising temperature, the Duo (bimetallic) stainless steel plates bend and pull the stage nozzle into the closing position. The orifice is then closed immediately below the saturation temperature. Thermodynamic processes taking place in the stage-nozzle chamber support the closing procedure.
The trap provides automatic air-venting at start-up and during operation. BK 45 and BK 46 can also be used for thermal air-venting in steam systems.

Mechanical:

PN40/ Class 300

Max Temperature: 450°C

DN 15-20-25

End Connections:

+ Flanged

+ Screwed sockets

+ Socket Weld

+ Butt Weld

Features of the BK series:

+ Robust regulator for roughest operating conditions (unaffected by waterhammer and frost)

+ Suitable for superheated steam applications

+ Automatic air-venting (steam trap can be used for thermal air-venting in steam systems)

+ Installation in any position (horizontal and vertical lines)

+ Stage nozzle acts as non-return valve

+ Stainless steel internals

+ Repairable in-line

+ Base bushing ensures positive metal-to-metal sealing between body and regulator

+ Up to ∆p 275 bar g

+ Optional extra: Integrated steam trap monitoring for BK 45 (temperature or steam loss)

Application:

For open-loop controlled heating processes.

Draining of
– saturated steam lines
– superheated steam lines
– steam tracers

Can also be used for thermal air-venting
