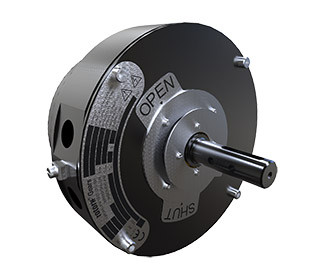

SPI Smart Position Indicator

SPI Smart Position Indicator

The Smart Position Indicator is designed for use in chemical, petro-chemical, oil and gas industries, power plants and water supply.

Limit switches enclosed in a IECEx/ATEX certified protective enclosure provide an accurate and reliable Open/Close signal to the control room for multi-turn manual valves. Using 30+ years of proven technology, the new Smart Position Indicator mechanically displays the position of the valve for in-field notification and digitally signals its open/closed position.

With certification for use in gas and dust explosion hazardous environments, the Smart Position Indicator helps to create a safer working environment.

Features

  • Ratios from 34.8:1 to 1,196:1
  • 4 sizes
  • Multi-turn manual duty
  • ISO 5210 F10 output
  • IP67
  • Aluminium housings
  • Stainless Steel fasteners
  • Protected shafts
  • Adjustable open/shut plates & contacts
  • Maintenance free
  • Mount to existing F10 input flange, direct mount to rising stem valve
  • Switches & terminals housed inside a protective enclosure
  • Switches used: Bartec 07-1501-6520-63, Pepperl+Fuchs NCB2-V3-N0, Crouzet 831391 CBB.5.A, Omron D3V-161-1A5 (or equivalent)

Options:

  • Pin / key handwheel
