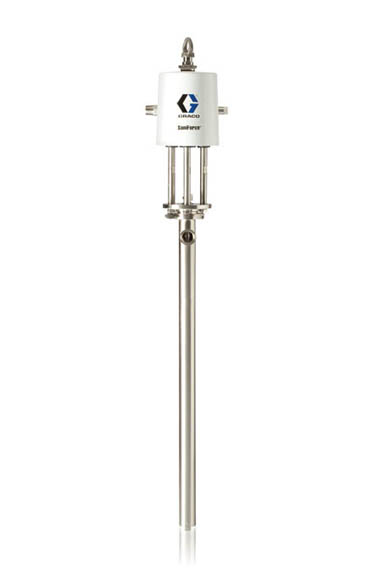

SaniForce 6:1 Piston Pump
SaniForce 6:1 Piston Pump

SaniForce 6:1 Piston Pump

- Maximum fluid working pressure: 650 psi (4.5 MPa, 44.8 bar)

- Maximum air inlet pressure: 100 psi (0.7 MPa, 6.9 bar)

- Maximum recommended pump speed: 60 cpm, 4 gpm (15 l/min)

- Maximum size pumpable solids: 1/8 in. (3.2 mm)

- Maximum fluid temperature: 250oF (121oC)

- Maximum ambient temperature (air motor): 120oF (49oC)

- Air inlet: 1/2 in. npt(f)

- Air outlet: 3/4 in. npt(m)

- Fluid inlet type:

     2.3 in. (5.8 cm) Priming Piston

     2.5 in. (6.3 cm) Clamp

     1.44 in. (3.6 cm) Slotted

     2.3 in. (5.8 cm) Priming Piston with flange for 6 in. (15.2 cm) Clamp

     1.44 in. (3.6 cm) Slotted with flange for 6 in. (15.2 cm) Clamp

     1-1/2 in. (3.8 cm) Tri-clamp

- Fluid outlet: 1-1/2 in. (3.8 cm) Tri-Clamp
