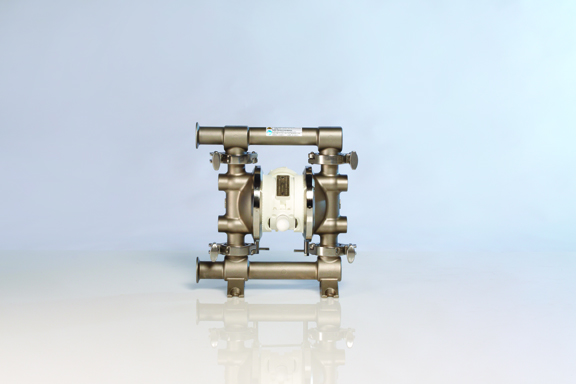

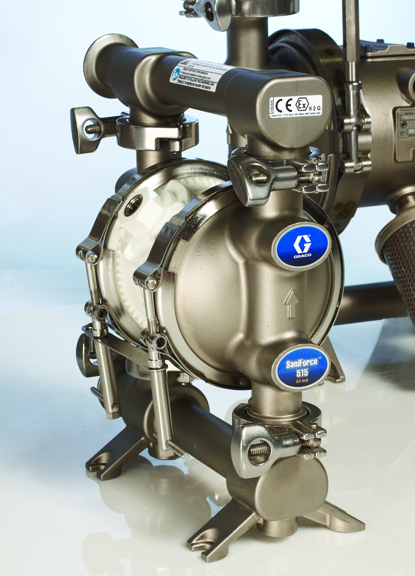

SaniForce 515 Double Diaphragm Pump

  SaniForce 515 Double Diaphragm Pump:

  - 1 in (25.4 mm) Tri-clamp connection

  - All fluid contact materials are FDA-compliant and meet the United States Code of Federal Regulations (CFR) Title 21

  - Fluid pressure to 100 psi (7 bar, 0.7 MPa)

  - Flow rates of 15 gpm (56.7 lpm)

  - Applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original container to smaller receptacles - up to 10,000 cps

  - Suitable to pump such products as: flavorings, purees, sauces and other low to medium viscosity materials

  SaniForce 515 Drum Siphon kit:

  Great for quickly unloading 55 gallon drums of low to medium viscosity materials. The SaniForce 515 Drum Kit (Graco part #262828) comes standard with:

  - 316 SST drum length suction tube

  - 316 SST mounting bracket

  - 316 SST bung adapter

  - 316 SST tri-clamp clamps

  - FDA-compliant gaskets

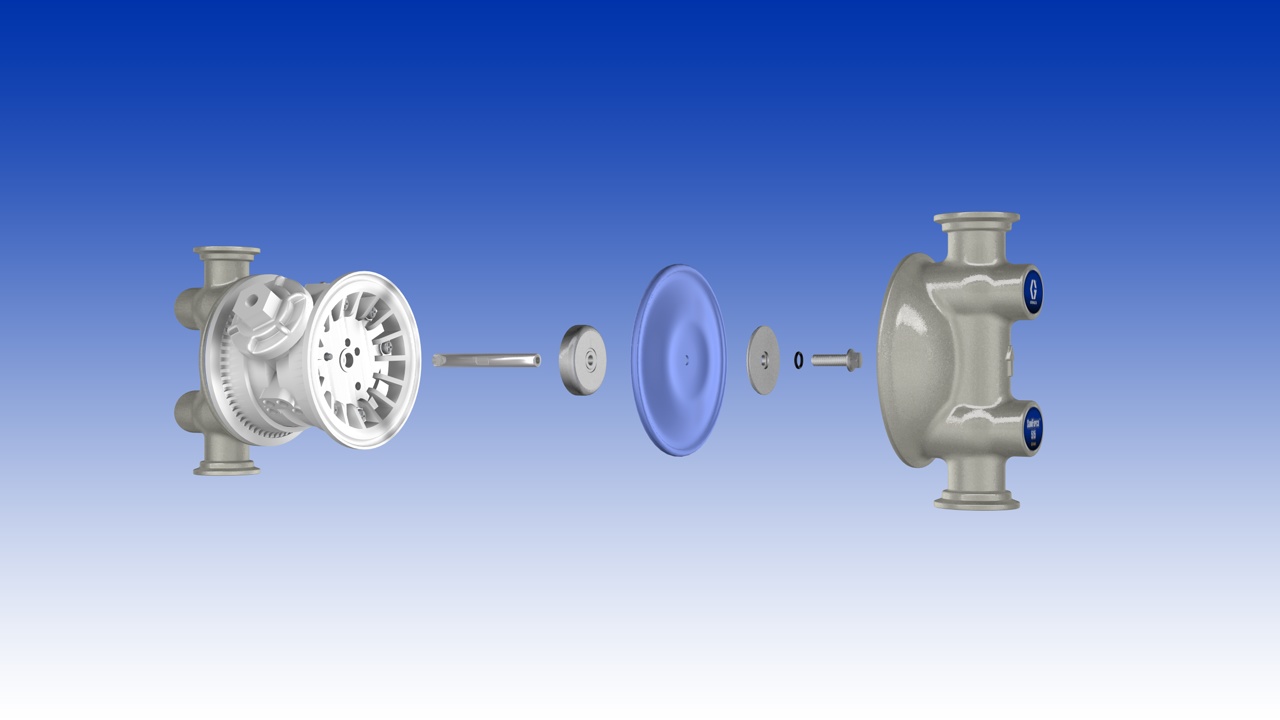

  PTFE/EPDM Overmolded Diaphragms

  - Overmolded diaphragm plate with PTFE on the fluild side and EPDM on the air side on Graco's PTFE/EPDM diaphragms so there's no place to harbor bacteria

  - Improve wear and diaphragm life with no exposed diaphragm plate on the fluid side

  - Longer diaphragm life in abrasive applications that still require PTFE

  - Available on the SaniForce 1040, 1590, 2150 and SaniForce HS 1590 and 3150
