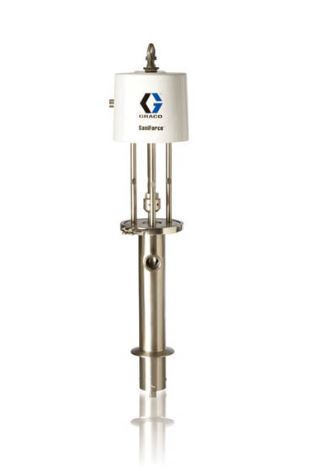

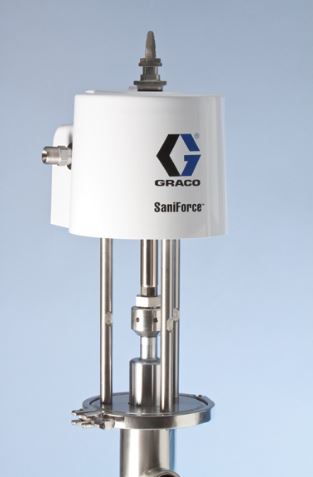

SaniForce 5:1 Piston Pump

- Maximum fluid working pressure: 410 psi (2.9 MPa, 28.7 bar)

- Maximum air inlet pressure: 80 psi (0.6 MPa, 5.5 bar)

- Maximum recommended pump speed: 60 cpm, 14 gpm (53 l/min)

- Maximum size pumpable solids: 1/4 in. (6.4 mm)

- Maximum operating temperature: 140^oF (60^oC)

- Maximum ambient temperature (air motor): 120^oF (49^oC)

- Air inlet: 1/2 in. npt(f)

- Air outlet: 3/4 in. npt(m)

- Fluid inlet type:

     4 in. (10.2 cm) Slotted

     90 degree elbow, 2.5 in. (6.3 cm) Tri-clamp

     4 in. (10.2 cm) Priming Piston

     4 in. (10.2 cm) Priming Piston with flange for 6 in (15.2 cm) Clamp

     4 in. (10.2 cm) Slotted with flange for 6 in (15.2 cm) Clamp

- Fluid outlet: 2 in. Tri-Clamp
