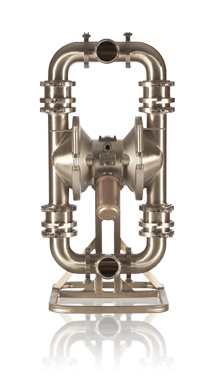

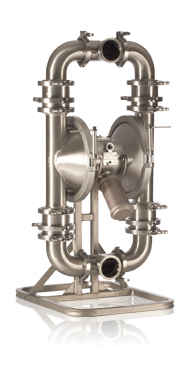

SaniForce 3150 HS Double Diaphragm Pump

Product Code: SaniForce 3150 HS Double Diaphragm Pump

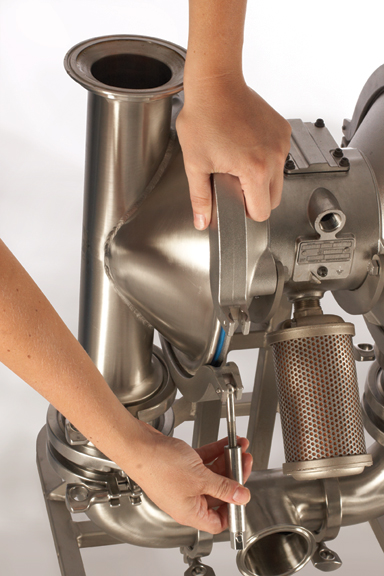

Describe: The ease of disassembly of the fluid ends, large porting, and high flow capacity, makes the SaniForce 3150 HS sanitary pump perfect for your high volume application needs. Designed for applications that benefit from the convenience of quick knockdown design, but may not require leak detection.

SaniForce 3150 HS Double Diaphragm Pump

- Pump rotates 360 degree for easy draining

- Passes solids up to 1 in (25 mm) in diameter

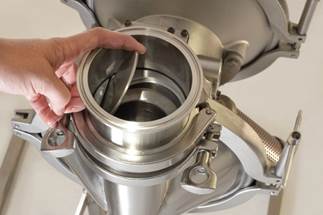

- Easily converted in to a 3150 sanitary flapper pump with optional kit

- Stainless steel wetted and fluid center sections

- Features Graco's durable, lube-free non-sticking air valve

- Transfer product from a variety of containers to smaller receptacales - up to 20,000 cps

- Suitable to pump products such as: fruit filling, spaghetti sauce, muffin and cake batter, oils and lotions

PTFE/EPDM Diaphragms

- Overmolded diaphragm plate with PTFE on the fluid side and EPDM on the air side on Graco's PTFE/EPDM diaphragms so there's no place to harbor bacteria

- Improve wear and diaphragm life with no exposed diaphragm plate on the fluid side

- Longer diaphragm life in abrasive applications that still require PTFE

- Available on the SaniForce 1040, 1590, 2150 and SaniForce HS 1590 and 3150
