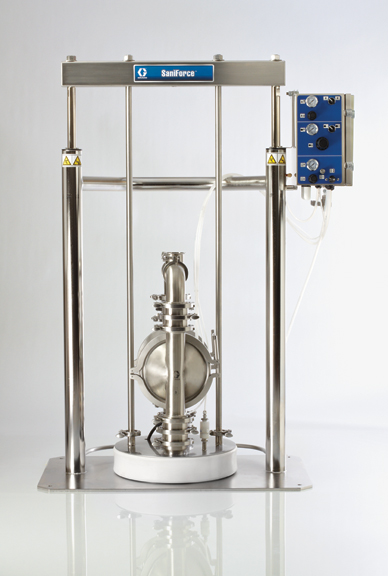

SaniForce 3150 Drum Unloader

- Maximum fluid working pressure: 120 psi (0.8 MPa, 8 bar)

- Air pressure operating range: 20-120 psi (0.14-0.8 MPa, 1.4-8 bar)

- Maximum air consumption: 175 scfm

- Maximum free-flow delivery: 160 gpm (606 l/min)

- Maximum size pumpable solids:

     Flapper 2.5 in. (63.5 mm)

     Ball 1.0 in. (25.4 mm)

- Maximum pump speed: 145 cpm

- Maximum fluid operating temperature is based on the following maximum diaphragm, ball, and seat temperature ratings:

     PTFE balls 220^oF (104.4^oC)

     PTFE/EPDM Overmolded (HD) diaphragm 180^oF (82^oC)

     Santoprene balls or diaphragm 180^oF (82.2^oC)

     3A Approved EPDM Overmolded diaphragm  275^oF (135^oC)

     Buna-N balls or diaphragm 180^oF (82.2^oC)

     Fluoroelastomer balls or diaphragm 250^oF (121.1^oC)

- Air inlet size: 0.5 in. npt(f)
