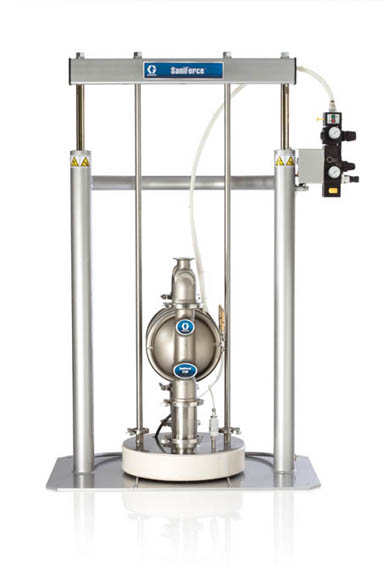

SaniForce 2150 Drum Unloader
SaniForce 2150 Drum Unloader SaniForce 2150 Drum Unloader SaniForce 2150 Drum Unloader SaniForce 2150 Drum Unloader SaniForce 2150 Drum Unloader SaniForce 2150 Drum Unloader SaniForce 2150 Drum Unloader

SaniForce 2150 Drum Unloader

- Maximum fluid working pressure: 120 psi (0.8 MPa, 8 bar)

- Air pressure operating range: 20-120 psi (0.14-0.8 MPa, 1.4-8 bar)

- Maximum air consumption: 175 scfm

- Maximum free-flow delivery: 160 gpm (568 l/min)

- Maximum pump speed: 165 cpm

- Maximum fluid operating temperature is based on the following maximum diaphragm, ball, and seat temperature ratings:

     PTFE 2-piece: 220oF (104.4oC)

     PTFE Overmolded 180oF (82oC)

     Santoprene 180oF (82.2oC)

     EPDM 275oF (135oC)

     Polychloroprene 200oF (93oC)

     Stainless steel 250oF (121.1oC)

- Air inlet size: 0.5 in. npt(f)

- Fluid inlet size:

     Models 24G743 and 24G744 (for ram mounting): 4 in. sanitary flange

     All other models: 2.5 in. sanitary flange or 65 mm DIN 11851

- Fluid outlet size: 1.5 in.sanitary flange or 40 mm DIN 11851

     Models 24G743 and 24G744 (for ram mounting): 3 in. sanitary flange

     All other models: 2.5 in. sanitary flange or 65 mm DIN 11851
