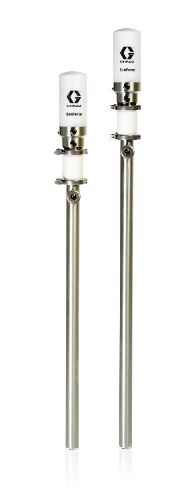

SaniForce 2:1 Piston Pump

- Maximum fluid working pressure: 250 psi (17 MPa, 1.7 bar)

- Air inlet pressure range: 30-100 psi (0.2 to 0.7 MPa; 2.1 to 6.9 bar)

- Maximum recommended pump speed: 100 cpm, 2.5 gpm (9.5 l/min)

- Maximum size pumpable solids: 1/8 in. (3.2 mm)

- Maximum operating temperature: 180^oF (82^oC)

- Maximum ambient temperature (air motor): 120^oF (49^oC)

- Air inlet: 3/8 in. npt(f)

- Air outlet: 3/8 in. npt(m)

- Fluid inlet size:

     Cylinder OD: 2.0 in. (5 cm)

     Inlet seat ID: 0.938 in. (2.4 cm)

- Fluid outlet: 1 in. Tri-Clamp
