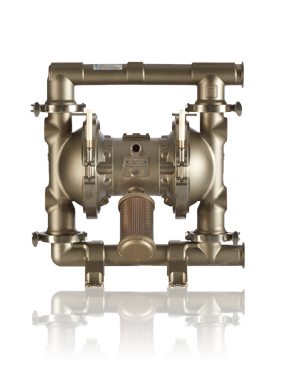

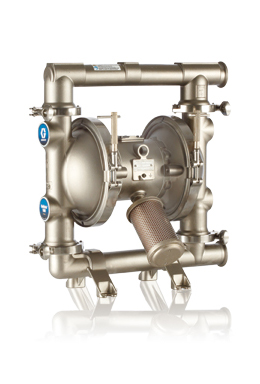

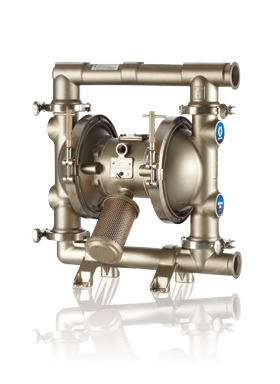

SaniForce 1590 Double Diaphragm Pump

SaniForce 1590 Double Diaphragm Pump:

- 2 in (51 mm) Tri-clamp connection

- 90 gpm (341 lpm) in a compact, portable size

- All fluid contact materials are FDA-compliant and meet the United States Code of Federal Regulations (CFR) Title 21

- Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)

- High volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original container to smaller receptacles - up to 15,000 cps

- Suitable to pump such products as: concentrated fruit juices, sauces, pastes, starches, wine, food-grade oil, jams and jellies

  Patented, lube-free air valve:

  - Three-way pilot valve for no-stick operation

  - 316 series stainless steel rod design for long life and corrosion resistance

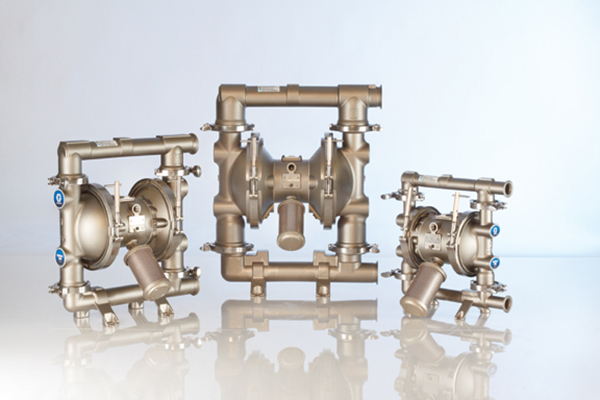

  - 1040, 1590 and 2150 SaniForce pumps use common center sections

  - 100% externally serviceable air valve

  PTFE/EPDM Overmolded Diaphragms:

   - Improve wear and diaphragm life with no exposed diaphragm plate on the fluid side

  - Longer diaphragm life in abrasive applications that still require PTFE

  - Available on the SaniForce 1040, 1590, 2150 and SaniForce HS 1590 and 3150
