RCEL

RECL

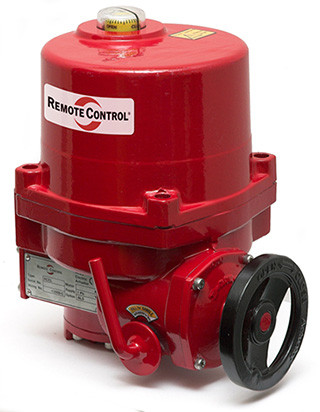

RECL electric actuators provide efficient, high-performance automation of quarter-turn valves. They are ideally suited for on/off control applications and provide IP67 and NEMA 4&6 certifications for environmental protection. Housed within anodised and epoxy painted aluminium, they operate in a temperature range of -20 to +70 °C (RCEL005/005L) and -30 to +70 °C (RCEL006-250).

Features and benefits:

• For on-off control
• Dome-type end-position indicator
• Irreversible worm gear
• Manual override handwheel with automatic disengagement
• Mechanical adjustment in both end positions
• Enclosure: IP67 NEMA 4 and 6 (RCEL006-250), IP67 NEMA 4 and 6 (RCEL005/005L)
• Housed in anodised and epoxy painted aluminium
• Stainless steel screws
• Temperature range: -20 to +70 °C (RCEL005/005L) and -30 to +70 °C (RCEL006-250)
• Power supply voltage: 24VDC, 1-phase 120VAC (50/60Hz), 1-phase 230VAC (50/60Hz), 3-phase 380/400/440VAC (50/60Hz)
• Options: modulating design, IP68 enclosure (RCEL006-250), explosionproof design (ATEX or CSA) (RCEL006-250), local/remote control, position transmitter, extended turning angle, customer specified paint
