Q

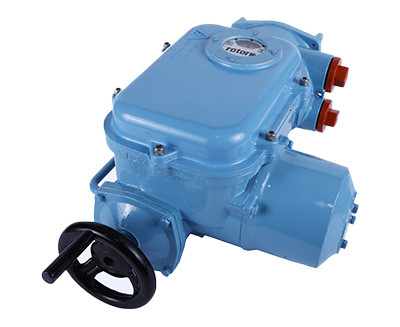

The Rotork Q range is comprised of Q Standard and Q Pak actuators; a simple and cost-effective way of controlling small quarter-turn valves and dampers. They are robust, dependable and compact part-turn actuators that provide flexibility and reliability. They are designed to meet an industry need for a compact and reliable watertight actuator where an IP68 (NEMA 6) enclosure is required.

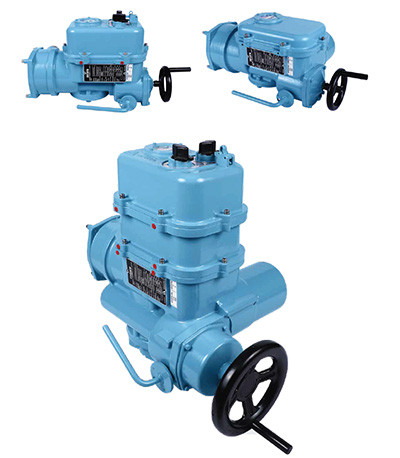

The Q Pak variant includes the addition of a control interface module, including a local control selectors, logic PCB, motor switchgear and transformer. This allows for increased integration of Q Pak actuators with existing site systems.

• Continuous position indication at all times, even without power
• Water ingress protection – double-sealed to IP68 1.2 m for 48 hours
• Torque available from 40 to 900 Nm (30 to 664 lbf.in)
• 3-phase and single phase options (model dependent)
• Self-locking drive train in electrical and manual modes to prevent valve back driving
• Increased protection by using independent torque and position sensing
• Oil bath lubrication provides extended life and the ability to mount in any orientation
