Product detail

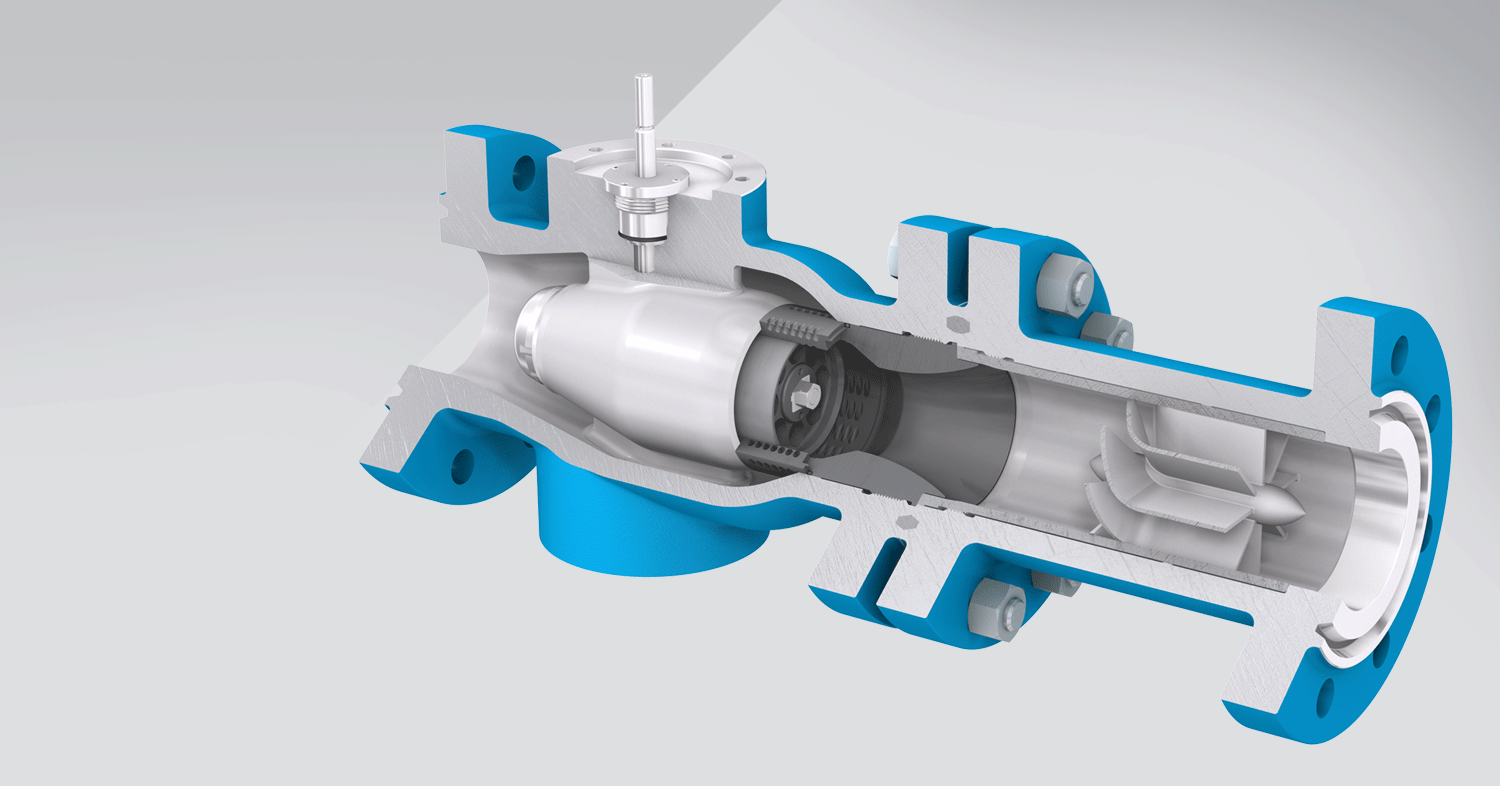

Low shear Typhoon Valve System

Product Code: Low shear Typhoon Valve System

Describe: Typhoon® Valve System is a cost efficient way to debottleneck your separation and produced water treatment systems without requiring additional equipment, simply by replacing the existing valves with the more separation efficient Typhoon Valve System. This low shear valve is based on cyclonic flow which proves to outperform labyrinth or drilled hole cage solutions in regard to shear reduction.

Type designation

Low shear control system

Model

RZD-LS-R..... / CHV-LS-R....

Scope

Sizes 3" - 16", rating class ASME 150 – 2500
Other sizes and ratings upon request

In preference to

Multi stage labyrinth type valves
(angle and in-line)
Conventional globe control valve
(angle and in-line)
Conventional choke valve (angle and in-line)

Typical applications

Oil Production
Level control
Produced water
Production choke

Special features

Custom-designed cyclonic valve for each application to maximize liquid droplets based on performance models established during development.
Full range of matching pneumatic, hydraulic and electric actuators are available.
System which is interchangeable with existing Mokveld choke valves.
Next to the axial Typhoon Valve System, there is also the option for an angle Typhoon Valve System.

Low shear angle Typhoon Valve System

Development

The Typhoon Valve System is developed in close cooperation with Typhonix AS in Norway. For more information regarding Typhoon Technology visit typhonix.com.

To get a better understanding about low shear theory and technologies visit lowshearschool.com
