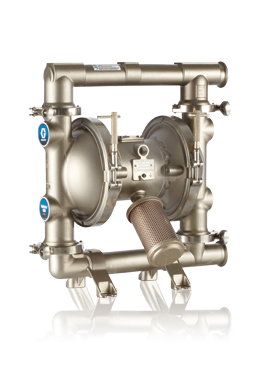

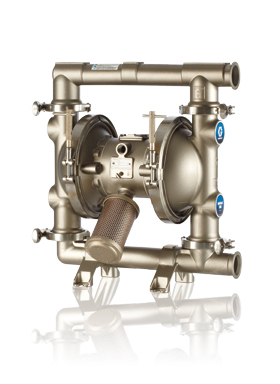

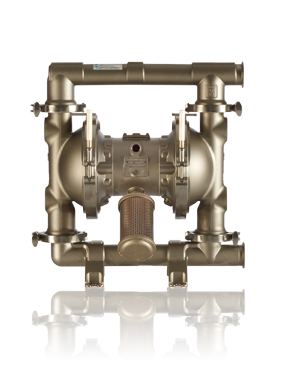

Husky 1590 AODD

- Maximum fluid working pressure: 120 psi (0.8 MPa, 8 bar)

- Air pressure operating range: 20-120 psi (0.14-0.8 MPa, 1.4-8 bar)

- Maximum air consumption: 130 scfm

- Maximum free-flow delivery: 100 gpm (379 l/min)

- Maximum pump speed: 200 cpm

- Maximum fluid operating temperature is based on the following maximum diaphragm, ball, and seat temperature ratings:

     PTFE 2-piece: 220^oF (104.4^oC)

     PTFE Overmolded 180^oF (82^oC)

     Santoprene 180^oF (82.2^oC)

     EPDM 275^oF (135^oC)

     Polychloroprene 200^oF (93^oC)

     Stainless steel 250^oF (121.1^oC)

- Air inlet size: 0.5 in. npt(f)

- Fluid inlet size: 2.0 in. sanitary flange or 50 mm DIN 11851

- Fluid outlet size: 2.0 in.sanitary flange or 50 mm DIN 11851
