Product detail

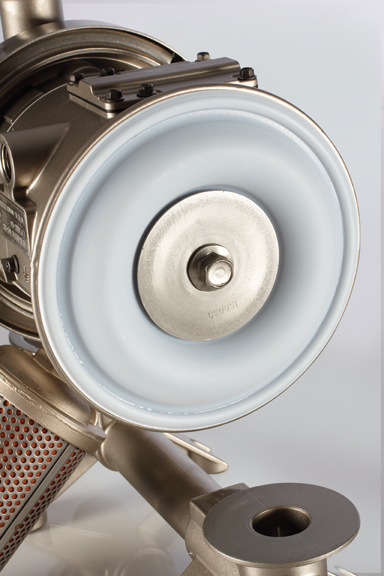

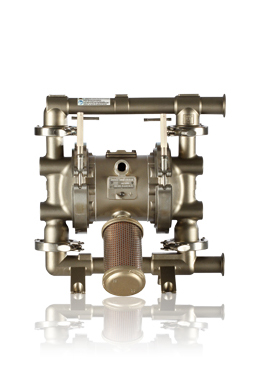

Husky 1040 AODD
Husky 1040 AODD Husky 1040 AODD Husky 1040 AODD

Husky 1040 AODD

- Maximum fluid working pressure: 120 psi (0.8 MPa, 8 bar)

- Air pressure operating range: 20-120 psi (0.14-0.8 MPa, 1.4-8 bar)

- Maximum air consumption: 50 scfm

- Maximum free-flow delivery: 41 gpm (155.2 l/min)

- Maximum pump speed: 256 cpm

- Maximum fluid operating temperature is based on the following maximum diaphragm, ball, and seat temperature ratings:

     PTFE 2-piece: 220oF (104.4oC)

     PTFE Overmolded 180oF (82oC)

     Santoprene 180oF (82.2oC)

     EPDM 275oF (135oC)

     Polychloroprene 200oF (93oC)

     Stainless steel 250oF (121.1oC)

     Fluoroelastomer 320oF (160oC)

- Air inlet size: 0.5 in. npt(f)

- Fluid inlet size: 1.5 in. sanitary flange or 40 mm DIN 11851

- Fluid outlet size: 1.5 in.sanitary flange or 40 mm DIN 11851
