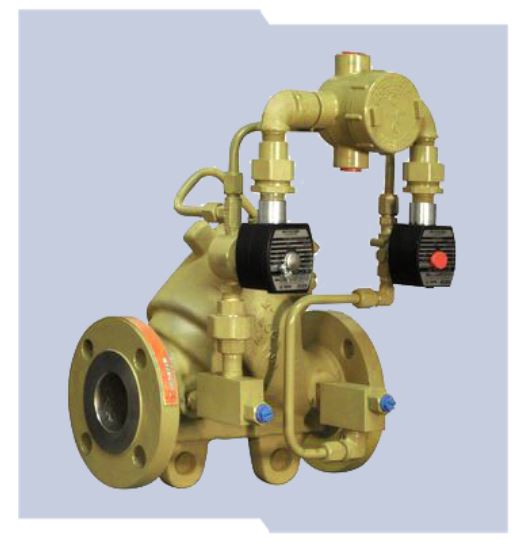

DIGITAL CONTROL VALVES
DIGITAL CONTROL VALVES

Features :

  • Effective planning and execution of maintenance and product lifecycle strategies is essential to meeting production and metering targets, and keeping costs low. The right mix of maintenance activities will help you operate safely, consistently and economy
  • Avoid damage due to shock pressure with adjustable control of closing speed
  • Reduce pressure drop and maintenance compared to axial flow valves with high-capacity, 45º piston operation
  • Control pressure from 60 to 9928 kPa (10 to 1440 psi) within ±13.8 kPa (±2 psi) of setpoint
  • Improve reliability with positive O-ring seal and valve seats not affected by fluid viscosity and pressure drop
  • Protect equipment and personnel with positive shutoff (ANSI Class VI) and fail-safe closure upon power loss
  • Maximize uptime with all internal parts housed in a cartridge assembly; no need to remove the valve from the line
  • Minimize wear-related maintenance with a simple design featuring no diaphragms or stuffing boxes

Specifications :

Line Size DN50 to DN200 (2-in to 8-in)
Fluid Type Liquid
Operating Temperature Range -29º C to +66º C (-20º F to +150º F)
Operating Pressure Range ANSI 150 to 300
Materials: Valve Body Carbon Steel, ASTM A352 GR LCC
Materials: Valve Cylinder DN50 to DN 200 (2-in to 4-in): Stainless Steel, ANSI 150 to 600; DN250 to DN 300 (6-in to 8-in) Carbon Steel, Nickel Coated, ANSI 150 to 600
Materials: Valve Piston Standard: Stainless Steel
Materials: Seat Ring DN50 to DN200 (2-in to 6-in) Stainless Steel; DN300 (8-in) Carbon Steel, Nickel Coated
Materials: O-Rings Standard: Viton; Optional: Neoprene, EPR, Kalrez / Teflon AP (Aggressive Products)
