Coriolis Mass Flowmeter

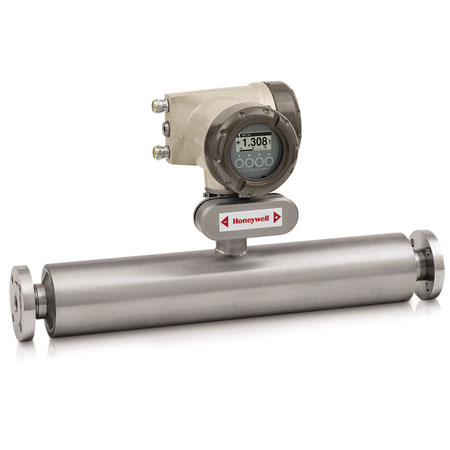

Versaflow Coriolis 100:

Size: DN15 to DN50 max flowrate: 170,000 kg/h
Accuracy: ±0.15% (liquid) of actual measured flow rate; ±0.5% (Gas) of actual measured flow rate
Process connection: DIN, JIS & ASME B16.5 (150lbs RF to 600lbs RF)
Temperature: -40 to 130oC
IP 66/67 eq. NEMA 4/4X / 6
Approval:  II 2(1) G Ex d [ia/ib] IIC T6....T1, II 2(1) D Ex tD [iaD] A21 IP6x T165°C
Measuring tube material: SS316L hygenic application
Housing: Aluminum or SS316
Heating jacket: Stainless Steel 316L (1.4404) (The outer cylinder is in contact with the heating medium)
Converter: TWC 010 Modbus, TWM 9000 Compact/Field/Wall/Remote mounted, cable length max 300m

Versaflow Coriolis 1000:

Size: DN6 to DN80 max flowrate: 559,000 kg/h
Accuracy: ±0.1% (liquid) of actual measured flow rate; ±0.5% (Gas) of actual measured flow rate
Process connection: DIN (PN63), JIS & ASME B16.5 (150lbs RF to 600lbs RF)
Temperature: -40 to 150oC
IP 66/67 eq. NEMA 4/4X / 6
Approval:  II 2(1) G Ex d [ia/ib] IIC T6....T1, II 2(1) D Ex tD [iaD] A21 IP6x T165°C
Measuring tube material: SS316L, Titanium, Hastelloy® C-22
Housing: Aluminum or SS316
Heating jacket: Stainless Steel 316L (1.4404) (The outer cylinder is in contact with the heating medium)
Converter: TWC 010 Modbus, TWM 9000 Compact/Field/Wall/Remote mounted, Cable length max 300m

VersaFlow TWC 9000/TWC 010:

TWC 010C, TWC 9000 C (compact or Integrally Mounted), F (field), W (wall), R (19" rack, Remote Mounted)
Accuracy: 0.1%, temperature: -50 to +70°C
IP 66/67 for Compact or Field, IP65 for Wall and IP20 for 19” Rack
EEx zone 1, FM - class I div. 2, CSA – class l div.2 etc…
Housing: Aluminum, Stainless Steel and Aluminum sheet, partially polyestercoated, cable connection ½" NPT, M20
Display: Setting the parameters using 2 measured value pages, 1 status page, 1 graphics, page (measured values and graphics are freely adjustable)
Output: Current, pulse & status output, frequency output, limit switch, HART, control input, 3 counters, Modbus, Foundation Fieldbus, Ex-I, Profibus PA/DP
Sensors: Coriolis 100, Coliolis 200 & Coriolis 1000, cable length max 300m
Power supply: 100…230 VAC 50/60 Hz, 24 VAC/VDC
