Product detail

BES
BES BES BES BES BES

5:1 BES

BES3XX, BES4XX, BES8XX, and BESGBC

- Maximum working fluid pressure: 120 psi (0.84 MPa, 8.4 bar)

- Compressed air requirement: 80-120 psi (0.55-0.84 MPa, 5.5-8.4 bar)

- Flow rate: 120 gpm (454 lpm)

- Air consumption: 0.8 scfm per gpm (0.006 m3/min per lpm)

- Pump outlet: 3 in. tri-clamp

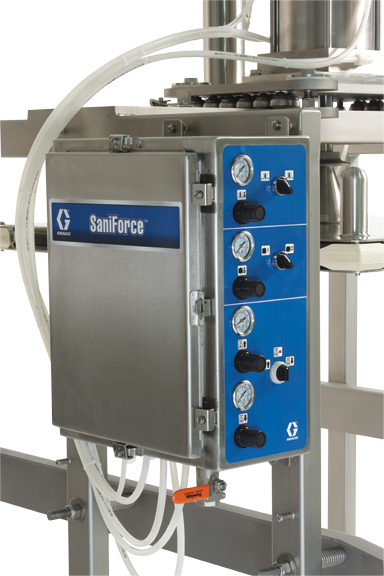

Pneumatic Control Panel

- Maximum input air pressure: 120 psi (0.84 MPa, 8.4 bar)

- Maximum up/down ram pressure: 75 psi (0.5 MPa, 5.2 bar)

- Air inlet - air controls: 3/4 in npt(f)

- Air inlet - pump: 1/2 in npt(f)

Electronic Control Panel

- Maximum input air pressure: 120 psi (0.84 MPa, 8.4 bar)

- Maximum up/down ram pressure: 100 psi (0.7 MPa, 7 bar)

- External power supply: 110 VA, 60 Hz, 15 amp maximum circuit breaker required

BESAxx, BESBxx, BESCxx, BESDxx, BESExx, and BESFxx

- Compressed air requirement: 80-100 psi (0.55-0.7 MPa, 5.5-7 bar)

- Pump outlet

     BESAxx, BESBxx, BESCxx, BESExx, BESFxx: 2 in tri-clamp

     BESDxx: 1.5 in tri-clamp

- Maximum working fluid pressure

     BESAxx, BESBxx, BESCxx: 410 psi (2.8 MPa, 28.3 bar)

     BESDxx: 650 psi (4.5 MPa, 44.8 bar)

     BESExx, BESFxx: 1450 psi (10.1 MPa, 100.4 bar)

- Fluid displacement

     BESAxx, BESBxx, BESCxx: 0.23 gal/cycle (0.87 l/cycle)

     BESDxx: 0.067 gal/cycle (0.25 l/cycle)

     BESExx, BESFxx: 0.14 gal/cycle (0.53 l/cycle)

- Flow rate @ 60 cpm

     BESAxx: 27.6 gpm (104.5 lpm)

     BESBxx: 54 gpm (204.4 lpm)

     BESCxx: 27.6 gpm (104.5 lpm)

     BESDxx: 8 gpm (30 lpm)

     BESExx: 17 gpm (64.3 lpm)

     BESFxx: 34 gpm (128.7 lpm)

- Pressure ratio

     BESAxx, BESBxx, BESCxx: 4.3:1

     BESDxx: 6:1

     BESExx, BESFxx: 10:1

- Air Consumption

     BESAxx, BESBxx, BESCxx: 1.8 scfm per gpm (0.14 m3/min per lpm)

     BESDxx: 6 scfm per gpm (0.17 m3/min per lpm)

     BESExx, BESFxx: 3.5 scfm per gpm (0.026 m3​/min per lpm)

Pneumatic Control Panel

- Maximum input air pressure: 100 psi (0.7 MPa, 7 bar)

- Maximum up/down ram pressure: 75 psi (0.5 MPa, 5.2 bar)

- Air inlet - air controls: 3/4 in npt(f)

- Air inlet - pump: 1 in npt(f)

Electronic Control Panel

- Maximum input air pressure: 100 psi (0.7 MPa, 7 bar)

- Maximum up/down ram pressure: 100 psi (0.7 MPa, 7 bar)

- External power supply: 110 VA, 60 Hz, 15 amp maximum circuit breaker required

- External power supply (BESE7H only): 220 VA, 50 Hz, 15 amp maximum circuit breaker required
