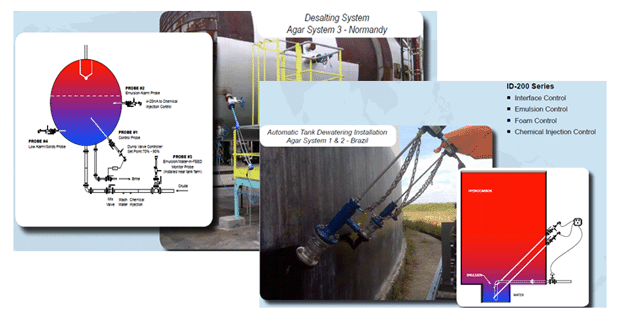

AGAR Interface Detectors

SYSTEMS:

ID-201 (½ Inch Shaft)
ID-202 (1 ¼ Inch Shaft)
ID-205 (Cable mounted)

OPERATING RANGE

Emulsion Concentration: 0-100% Hydrocarbon/Water by Volume
Process Temperature: Standard: 32°F to 300°F (0°C to 149°C)
High-Temp: 301°F to 800°F (149°C to 427°C)
Ambient Temperature: -40°F to 180°F
Pressure Rating: Standard: 300 psig (high pressures subject to review)
MATERIALS OF CONSTRUCTION
Probe: Standard: 316 Stainless Steel and Teflon
Optional: Zirconium, Hastalloy, Monel
(Others available on request)
Seals: Standard: Viton (Others i.e., Kalrez and Aflas available on request)
OPTIONAL PROCESS CONNECTION
SH-1"/SS: 1" NPT Seal Housing, 316 Stainless Steel
SH-1"/CS: 1" NPT Seal Housing, Carbon Steel
CF-3/4"/SS: 3/4" NPT Compression Fitting, 316 Stainless Steel
CF-3/4"/CS: 3/4" NPT Compression Fitting, Carbon Steel
Flanged Connections: Available on request

MODEL VARIATIONS
ID-201: 1/2” shaft
Standard: 48” (4 Ft.) Minimum: 12” (1 Ft.) Maximum: 120” (10 Ft.)
ID-202: For probe lengths greater than 10 feet, sturdier 1-1/4” shaft assemblies
from 5 foot sections via threaded joints.
ID-205: Shaft replaced by 1/4" cable for suspension of antenna down through
tanks, wells, platform legs, caverns, etc.

ELECTRICAL RATING
ID-201, ID-202, ID-205 Probe: Intrinsically Safe CSA: Class 1, Div.1, Groups C & D, T3C
CENELEC: EEx ia IIB T4 and EEx ia IIC T4
PS-201/Power Supply: 115/240 VAC 50-60 Hz or 12/24 VDC (±20%);
Maximum Power Consumption of 250 Watts
PS-201 Enclosures: Weatherproof (N4X) NEMA 4X
Explosion Proof (N7) NEMA 7 CSA Div.1, Class 1, Groups C&D
Flame-Proof (EEx d) CENELEC EEx d[ia] IIB T4
Wiring Connections: Barrier Terminal Block #18 AWG Maximum Diameter

OUTPUT OPTIONS
ID-201/4-20: Powered 4-20 mA into 400 Ohms Maximum;
4 mA = Oil, or Lowest Water Content
ID-201/RL: Relay Contact 1A; 115V; NO and NC; (SPDT);
Fail Safe On Water or Oil; Adjustable Trip Point
ID-201/RL/4-20: Relay and 4-20mA Options
ID-201/RL/LI: Relay with Local Indicating Lights; Amber = Oil, Blue = Water
ID-201/RL/PN: Relay with Pneumatic Output 75 PSI Maximum; 3-Way Explosion Proof
Valve, 12W, CSA and UL Listed; 1/4" NPT Connections, 3/32" Orifices,
Manual Override, Exhaust Speed Control.
ID-201/RL/420/LI/PN: With All Available Options.

CERTIFICATIONS
CSA Canadian Standards Association - #53314
BASEEFA British Approvals Service for Electrical Equipment in Flammable
Atmospheres - Ex 89C2219 and Ex 94C2223
CENELEC European Committee for Electrical Standardization
GOST-R Russian Approval for Hazardous Areas and Accuracy - A 0217A
JRIIS Japanese Research Institute of Industrial Safety - #C11735
