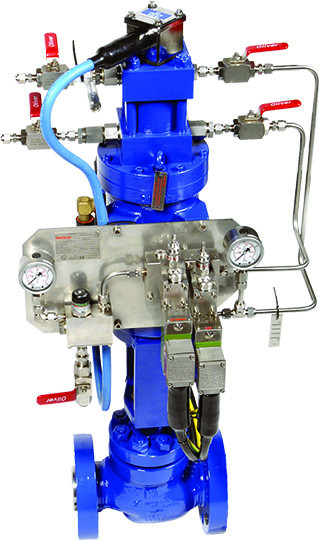

The electro-hydraulic stepping actuator provides a cost effective alternative solution to the mechanical ratchet style mechanism occasionally used for the positioning control of choke valves.

The assembly incorporates a hydraulic control system that is activated by an integral position controller in conjunction with a 4 to 20 mA command signal. The hydraulic control system is connected to a ring main pressure and return hydraulic header, or may incorporate a self-contained electro-hydraulic power supply within the actuator assembly.

Standard Design

The hydraulic control system comprises manifold mounted solenoid valves and speed control valves with hydraulic supply pressure filter and pressure gauge. Components are manufactured in 316 stainless steel and may be housed within a stainless steel control cabinet to provide additional environmental protection and security. The actuator assembly is designed with an interface to suit the standard valve top works.

Operation

With the control system connected to the hydraulic supply, a change in command signal will cause the valve to operate by energisation of the respective solenoid operated control valves in a series of pulses until the selected position is reached.

Features and Benefits

• Extended opening and closing operating speeds with all optional features associated with the double-acting, single-acting and quarter-turn options
• Remote switching to activate / deactivate stepping function
• Reliable operation reduces cost of ownership
• Compact design reduces installation cost
• Lower cost of maintenance
